Recover Data from a Corrupted SD Card: A Step-by-Step Guide

PAGE CONTENT:

SD cards are widely used for storing photos, videos, documents, and other important files in devices such as cameras, smartphones, tablets, and laptops. However, SD card corruption is a common issue that can result in data loss, leaving users frustrated. Whether due to improper handling, software issues, or physical damage, a corrupted SD card can become inaccessible.

Fortunately, in most cases, you can recover data from a corrupted SD card using various methods. This guide will explain the causes of SD card corruption, steps to diagnose the issue, and the best methods for data recovery. By following these steps, you can restore valuable files and prevent future data loss.

Common Causes of SD Card Corruption/Data Loss

Understanding why an SD card becomes corrupted can help in both recovering lost data and preventing future issues. Some of the most common causes include:

1. Improper Ejection or Removal

• Removing an SD card while files are still being written can cause file system errors.
• Failing to use the "Safely Remove Hardware" option on Windows or macOS can lead to corruption.

2. File System Errors

• SD cards use file systems such as FAT32, exFAT, or NTFS. A corrupted file system prevents proper access to stored data.
• Power failures or improper shutdowns can contribute to file system corruption.

3. Virus or Malware Infection

• Malicious software can infect an SD card, making files inaccessible or even deleting them.
• Downloading files from untrusted sources can introduce malware to the SD card.

4. Physical Damage

• SD cards are fragile, and exposure to water, heat, or physical stress can make them unreadable.
• Bent or broken connectors can prevent the device from recognizing the SD card.

5. Bad Sectors or Wear Over Time

• Flash memory degrades over time, leading to bad sectors that make parts of the SD card unreadable.
• Continuous usage can reduce the lifespan of the memory cells.

Preliminary Checks Before Corrupted SD Card Recovery

Before attempting data recovery, perform these basic checks to determine if the SD card is actually corrupted:

1. Try Using a Different Device

• To check if the SD card is detected, insert it into a different computer, smartphone, or camera.
• If it works in another device, the issue might be with the original device's reader.

2. Use a Different Card Reader or USB Port

• A faulty SD card reader or USB port may prevent the card from being detected.
• Try another card reader or port to rule out connection issues.

3. Restart Your Computer or Device

• A temporary glitch in your operating system could prevent the SD card from appearing.
• Restarting your device can refresh the connection.

4. Check If the Card is Recognized in Disk Management (Windows) or Disk Utility (Mac)

Windows:

• Press Windows + X → Select Disk Management
• Check if the SD card appears (even without a drive letter).

Mac:

• Open Disk Utility from Utilities via Applications.
• Look for the SD card in the left-hand panel.

If the card appears but is inaccessible, you can attempt recovery methods.

Methods to Recover Data from a Corrupted SD Card

If your SD card gets corrupted, you still can recover data from it. Follow these steps to repair SD card and recover lost data.

Method 1. Use Built-in OS Tools to Repair & Recover Corrupted SD Card

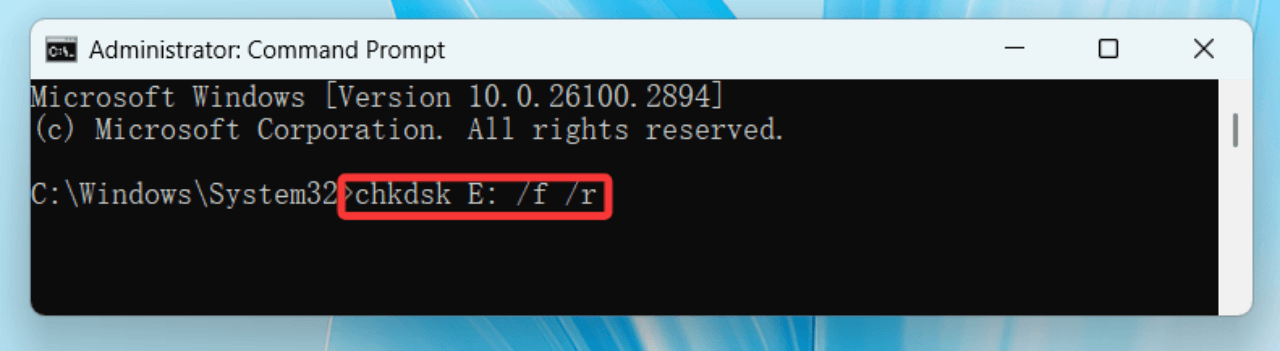

▪️ Windows: CHKDSK Command

CHKDSK (Check Disk) is a built-in Windows tool that scans and repairs file system errors on storage devices.

Steps to run CHKDSK:

Step 1. Insert the corrupted SD card into the computer.

Step 2. Open Command Prompt as an administrator.

Step 3. Type:

chkdsk X: /f /r

(Replace X with the drive letter of your SD card.)

Step 4. Press Enter and wait for the scan to complete.

Step 5. If successful, restart the computer and check if the files are accessible.

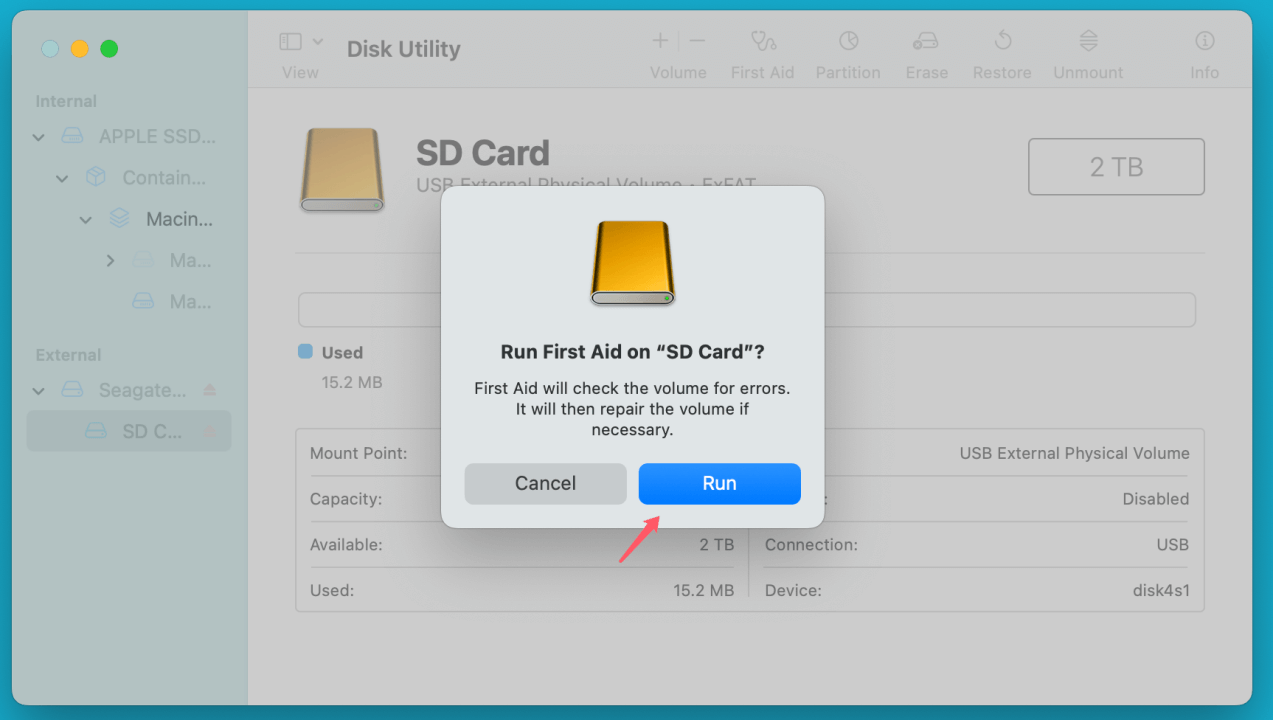

▪️ Mac: First Aid in Disk Utility

On macOS, the First Aid tool can scan and repair minor file system issues.

Steps to use First Aid:

Step 1. Open Disk Utility.

Step 2. Select the SD card from the left panel.

Step 3. Click First Aid → Run.

Step 4. If repaired successfully, try accessing the card again.

Method 2. Use Data Recovery Software to Recover Data from Corrupted SD Card

If built-in OS tools like CHKDSK (Windows) or First Aid (Mac) fail to fix your corrupted SD card, the next best option is data recovery software. These tools are designed to scan the card at a deep level, retrieving files even if the file system is damaged or the card is unreadable in normal use.

Below, we will discuss some of the best data recovery software options, how they work, and step-by-step instructions on using them.

Why Data Recovery Software Can Recover Corrupted SD Card?

Data recovery software functions by scanning the storage medium for traces of deleted or corrupted files. When a file is deleted or lost due to corruption, the actual data remains on the card until it is overwritten by new data. Recovery software scans the storage device and attempts to reconstruct the lost data.

There are two types of scans performed by recovery software:

1. Quick Scan:
   • Searches for recently deleted or missing files.
   • Faster but less effective if the file system is severely damaged.
2. Deep Scan:
   • Scans the entire SD card sector by sector.
   • Takes longer but has a higher success rate.
   • Useful for recovering data from formatted, corrupted, or unreadable SD cards.

Recover Lost Data from a Corrupted SD Card:

Donemax Data Recovery is one of the best SD data recovery programs. It can help you completely recover inaccessible/lost data from a corrupted SD card.

Step 1. You just need to download and install Donemax Data Recovery on your computer and insert the SD card into your computer or connect it to your computer via card reader.

Step 2. Open Donemax Data Recovery, select the SD card to start data recovery.

Step 3. Click on Scan button to perform a deep scan. It will find all recoverable files including existing files, hidden/inaccessible files, deleted/formatted/lost files, etc.

Step 4. After scan, you can preview all recoverable files. Then select the wanted files, click on Recover button to save them.

After recovering lost data from the corrupted SD card, you also can use Donemax Data Recovery to help in fixing corrupted SD card.

Method 3. Assign a New Drive Letter (Windows Only)

If the SD card is detected but not showing up in File Explorer, assigning a new drive letter might help.

Steps to assign a drive letter for the SD card:

Step 1. Open Disk Management.

Step 2. Locate the SD card (listed as Removable).

Step 3. Right-click → Select Change Drive Letter and Paths.

Step 4. Click Add and assign a new letter.

Step 5. Click OK and check if the card is accessible.

Method 4. Format the SD Card

If all recovery attempts fail, formatting the SD card may restore usability. However, this will erase all data, so use recovery software first.

Steps to format the SD card:

Windows:

Step 1. Open File Explorer → Right-click SD card → Select Format.

Step 2. Choose FAT32 or exFAT (for larger cards).

Step 3. Click Start.

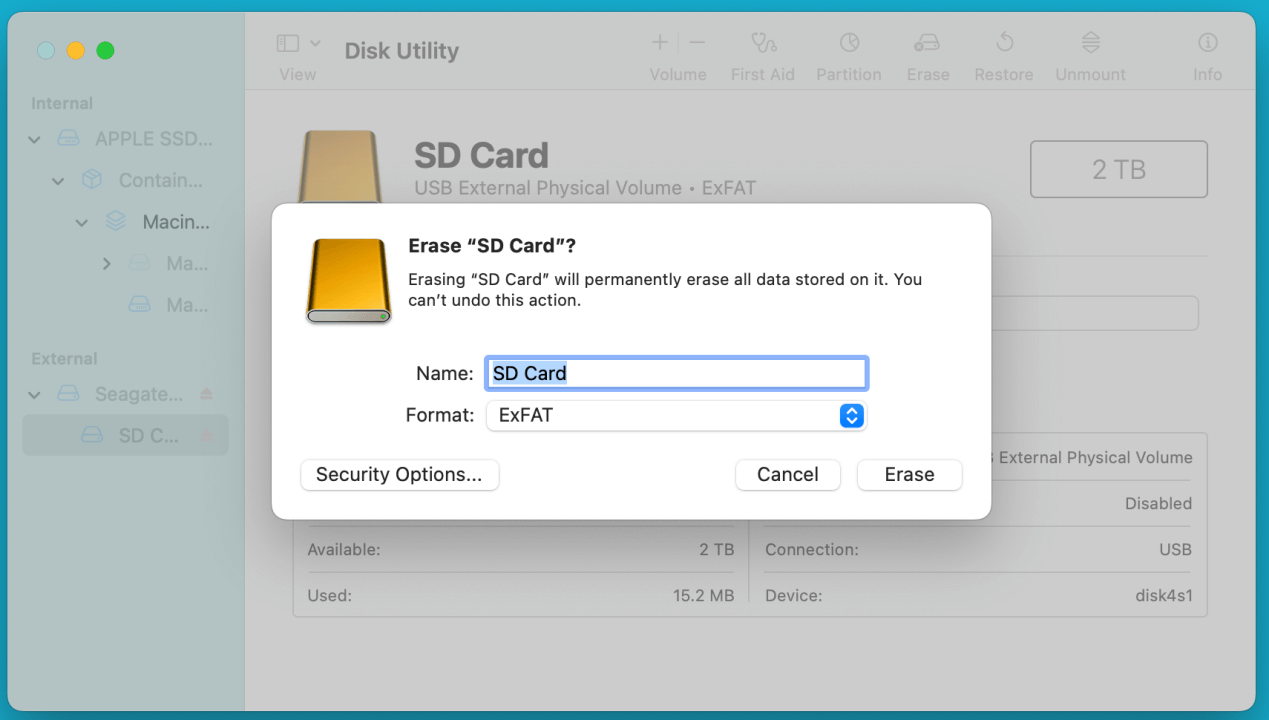

Mac:

Step 1. Open Disk Utility → Select SD card → Click Erase.

Step 2. Choose exFAT or MS-DOS (FAT).

Step 3. Click Erase.

After formatting, try using a data recovery tool to retrieve lost files.

Prevent Future SD Card Corruption and Data Loss

To avoid data loss in the future, follow these best practices:

1. Always Eject Properly: Use the "Safely Remove" option before unplugging the SD card.
2. Keep Backups: Regularly back up important data to cloud storage or an external hard drive.
3. Use Trusted SD Cards: Buy SD cards from reputable brands like SanDisk, Samsung, or Kingston.
4. Avoid Malware Risks: Scan your SD card for viruses before transferring files.
5. Protect from Physical Damage: Keep SD cards in protective cases and avoid exposure to extreme temperatures.
6. Run Regular Disk Checks: Use CHKDSK (Windows) or First Aid (Mac) periodically to maintain SD card health.

Conclusion

Recovering data from a corrupted SD card is possible with the right tools and techniques. First, try simple fixes like changing devices or using built-in repair tools. If these don't work, data recovery software can help restore lost files. As a last resort, formatting the SD card can make it usable again, though it will erase all existing data.

To prevent future corruption, always handle SD cards properly, back up important files, and use high-quality storage devices. If the SD card is physically damaged and critical data is lost, professional recovery services may be required.

By following this guide, you can maximize your chances of successfully recovering data and keeping your SD cards in good health!
