How to Recover Lost Data from a CFast Card?

PAGE CONTENT:

CFast (CompactFast) cards are widely used in professional photography, videography, and high-performance computing due to their speed and reliability. They are commonly found in high-end cameras, camcorders, and industrial applications where fast read/write speeds are essential. However, like all storage devices, CFast cards are susceptible to data loss due to accidental deletion, formatting errors, corruption, or physical damage.

Losing valuable files can be frustrating, but in many cases, lost data can be recovered. This comprehensive guide will walk you through the common causes of data loss, precautionary measures, various CFast card recovery methods, and best practices to prevent future data loss.

Everything About CFast Card

A CFast card is a removable flash storage device based on the Serial ATA (SATA) interface, unlike traditional CompactFlash (CF) cards that use the slower Parallel ATA (PATA) interface. CFast was introduced by the CompactFlash Association (CFA) in 2008 to address the increasing need for high-speed data storage in professional-grade devices.

CFast Card Versions & Speed Classes:

CFast cards have evolved over the years with different versions offering higher speeds:

1. CFast 1.0 – Introduced in 2008, offering speeds up to 300MB/s.

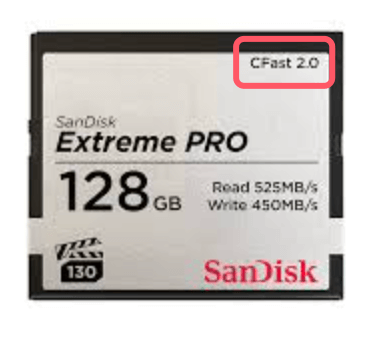

2. CFast 2.0 – Released in 2012, doubling speeds up to 600MB/s and widely adopted in professional cameras.

Manufacturers also categorize CFast cards based on their speed ratings:

• VPG-65 (Video Performance Guarantee) – Ensures a minimum write speed of 65MB/s.
• VPG-130 – Guarantees a minimum write speed of 130MB/s, ideal for 8K video recording.

Faster CFast cards ensure smooth recording without dropped frames, making them essential for high-end video production.

Uses of CFast Cards:

1. Professional Photography & Videography

• CFast cards are used in high-resolution cameras and camcorders such as those from Canon, ARRI, and Blackmagic.
• Supports continuous burst shooting without lag.
• Ensures smooth 4K and 8K video recording with high bitrates.

2. Broadcast and Cinema Production

• Widely used in the film industry for recording high-frame-rate footage.
• Offers high endurance and reliability for long-duration shoots.

3. Industrial and Embedded Systems

• Used in medical devices, automation systems, and aerospace applications where high-speed data processing is required.
• Provides stable performance in harsh environments.

4. Computing and Storage Expansion

• Some servers and computing devices use CFast cards as boot drives or data storage solutions.

Primary Causes of CFast Card Data Loss

1. Unintentional Deletion or Formatting

One of the most common reasons for data loss is human error. You might accidentally delete files or format the card without realizing it still contains important data. This means recovery is possible if no new files have overwritten the deleted data.

2. File System Corruption

File system corruption can render a CFast card unreadable. This can happen due to:

• Unexpected power loss while transferring files.
• Interruptions during file writing or deletion.
• Bad sectors developing on the card over time.
• Using the card across different devices that may not be fully compatible.

3. Virus or Malware Infection

CFast cards connected to infected computers or devices may become compromised. Malware can delete files, encrypt data, or make files inaccessible. While antivirus software may remove the malware, it does not always restore lost files.

4. Improper Ejection or Power Failure

Removing a CFast card while data is being written or failing to properly eject it from a device can cause corruption. If a camera or computer loses power mid-operation, the card's file structure can become damaged, making data inaccessible.

5. Physical Damage or Manufacturing Defects

Like any electronic device, CFast cards can suffer from physical damage due to bending, water exposure, or overheating. Manufacturing defects, though rare, can also cause failure. Recovering data from physically damaged cards often requires professional assistance.

Precautions Before CFast Card Data Recovery

Before attempting any recovery method, follow these precautions to increase your chances of successfully retrieving lost files:

• Stop using the CFast card immediately – Continued use increases the risk of overwriting lost files, making recovery more difficult.
• Do not format the CFast card – Formatting creates a new file system, making recovery more complex.
• Avoid running disk repair tools prematurely – Some built-in system repair tools (like CHKDSK on Windows) may fix errors but make file recovery harder.
• Use a card reader instead of connecting the camera directly – A faulty camera connection could cause further damage or errors.
• Check if files are hidden – Sometimes, files might still be there but not visible. Use the command prompt or file explorer settings to check.

Three Methods to Recover Lost Data from a CFast Card on Windows or macOS

Method 1. Use CFast Card Data Recovery Software

Using data recovery software is one of the simplest and most efficient ways to retrieve deleted/formatted/lost files from a CFast card. Numerous software programs are capable of scanning a CFast card and retrieving lost or erased data.

Popular Data Recovery Software for CFast Cards:

1. Donemax Data Recovery – User-friendly interface, good for recovering photos, videos, and documents.
2. Recuva – Free and effective for basic file recovery needs.
3. Disk Drill – Advanced scanning options, supports multiple file formats.
4. R-Studio – Best for advanced users with complex recovery needs.
5. Wondershare Recoverit – Offers deep scanning and video repair features.

Step-by-Step Guide to Recover Data Using Recovery Software:

1. Download and install the chosen recovery software on your computer (do not install it on the CFast card). Here, you can download and install Donemax Data Recovery on your computer.

2. Insert the CFast card into a card reader and connect it to your computer.

3. Launch the recovery software - Donemax Data Recovery and select the CFast card from the list of available drives.

4. Start scanning – click on Scan button to deeply scan the CFast card and find all recoverable files.

5. Preview recovered files – Most software allows you to preview files before restoring them.

6. Save recovered files to a different storage location (not the same CFast card).

Method 2. Restore Lost CFast Card's Files from a Backup

If you have a backup of your data, recovery becomes simple.

Ways to Restore from Backup:

1. Cloud Backup – Check if you have automatic cloud backups (Google Drive, Dropbox, OneDrive, iCloud).
2. External Hard Drive or Computer Backup – If you regularly transfer files from your CFast card, check your computer or external storage.
3. Camera Backup Features – Some cameras have dual card slots that back up data automatically.

If you are a Mac user and have backed the CFast card using Time Machine, you can restore lost files from Time Machine backups.

Method 3. Recover CFast Card with Professional Data Recovery Services

If your CFast card is physically damaged or software recovery fails, a professional data recovery service is your best option.

When to Use Professional Recovery Services:

• The card is physically broken or unreadable.
• Important files remain missing after software recovery attempts.
• The card is severely corrupted, preventing access even with recovery tools.

Cost and Reliability of Professional Services:

• Prices range from $100 to $1000+, depending on complexity.
• Success rates vary but are generally high for professional services.
• Look for reputable services with good customer reviews.

Preventive Measures to Avoid Future CFast Card Data Loss

To reduce the chances of data loss in the future, follow these best practices:

1. Regularly Back Up Data

• Always transfer files to your computer or cloud storage after a shoot.
• Use automated backup solutions whenever possible.

2. Use High-Quality CFast Cards

• Stick to trusted brands like SanDisk, Lexar, Sony, and ProGrade.
• Avoid counterfeit or cheap cards, as they have higher failure rates.

3. Properly Eject the CFast Card

• Always use the "Safely Remove Hardware" option before disconnecting.
• Power off your camera before removing the card.

4. Protect Against Physical Damage

• Store CFast cards in protective cases when not in use.
• Keep them away from extreme temperatures, water, and dust.

5. Avoid Using the Same Card on Multiple Devices Frequently

• Different devices may format cards differently, increasing corruption risk.
• If using across multiple devices, always format the card in the primary device before use.

Conclusion

Losing data from a CFast card can be stressful, but in many cases, it is possible to recover files using the right methods. Whether through CFast card recovery software, backups, or professional services, acting quickly and following best practices will maximize your chances of restoring lost data.

To prevent future loss, make backups a habit, handle your CFast cards carefully, and invest in high-quality storage solutions. By taking these precautions, you can ensure your valuable files remain safe and recoverable if needed.
