The Mac Fusion Drive is a unique storage technology introduced by Apple, combining the speed of Solid-State Drives (SSDs) with the large capacity of traditional Hard Disk Drives (HDDs). This innovation has provided Mac users with a cost-effective way to enjoy faster data access and substantial storage without the high cost of SSD-only setups. However, like any storage system, Fusion Drive is not immune to data loss. In this article, we'll explore what Fusion Drive is, how it works, common causes of data loss, and practical steps to recover lost data.

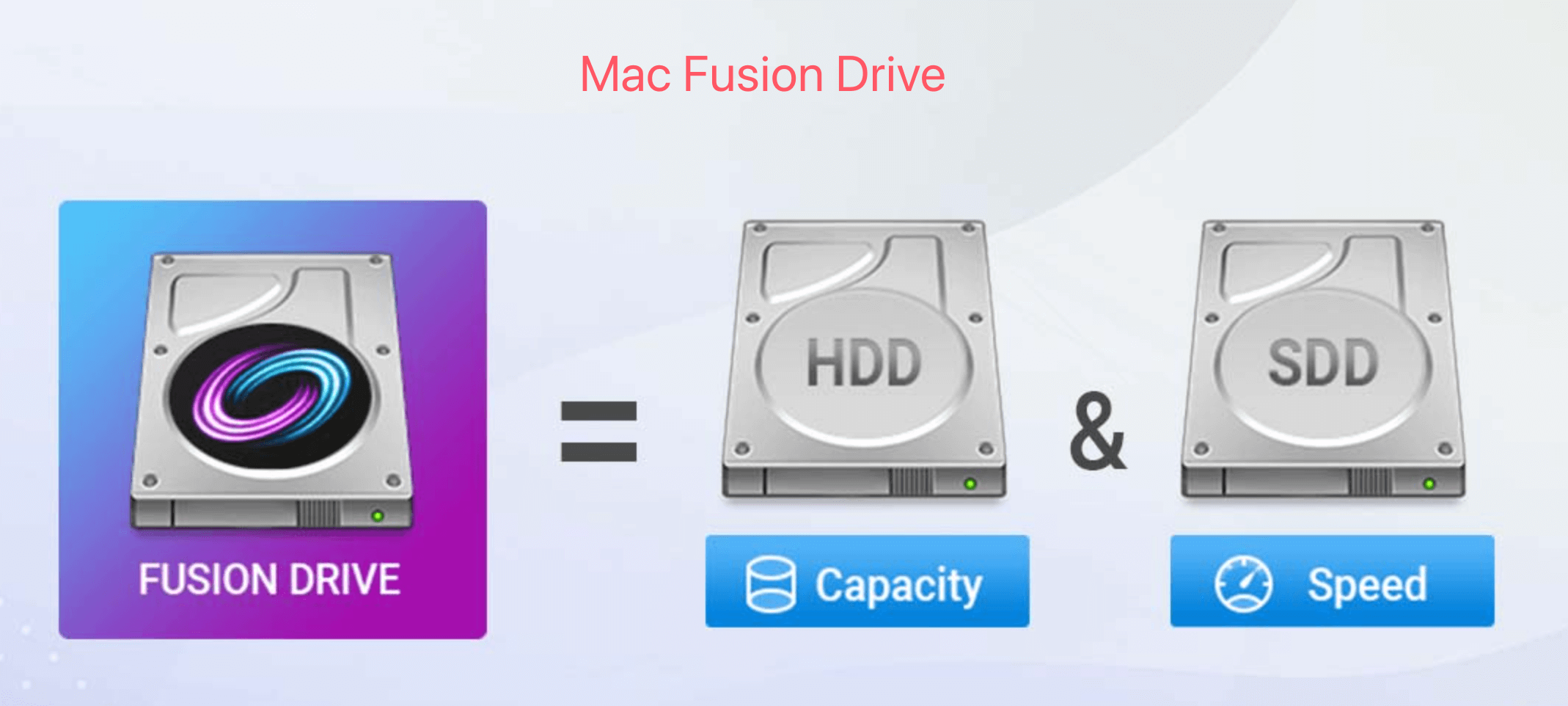

What is Mac Fusion Drive?

Definition and Concept

The Fusion Drive merges an SSD and an HDD into a single logical volume, allowing macOS to manage files between the two types of storage. Frequently accessed files, such as the operating system and applications, are stored on the faster SSD for quick access. Less frequently used files, like documents and media, are moved to the larger but slower HDD.

How Fusion Drive Works?

The technology works by dynamically transferring files between the SSD and HDD based on usage patterns. The system prioritizes performance by ensuring that files critical to system operations remain on the SSD. This seamless integration allows users to experience speed similar to SSDs without sacrificing storage space.

Advantages of Fusion Drive

• Enhanced Speed: Faster performance for frequently accessed files.
• Cost-Effective: More affordable than SSD-only configurations.
• High Capacity: Combines the storage of both the SSD and HDD.

Disadvantages of Fusion Drive

• Not as Fast as SSDs: The HDD portion can bottleneck performance.
• Data Loss Risks: If the logical volume linking the SSD and HDD is corrupted, accessing data becomes challenging.

Devices That Use Fusion Drive

Fusion Drives are commonly found in select iMac and Mac Mini models, making them popular among users needing a balance of speed and storage.

Common Causes of Data Loss on Fusion Drive

● Human Errors

Accidental deletion, formatting the drive without backups, and improper ejection of external devices are frequent human errors leading to data loss.

● Software Issues

File system corruption or software bugs during macOS updates can compromise data integrity. Logical volume errors can make the Fusion Drive inaccessible.

● Hardware Failures

Fusion Drives rely on two components: the SSD and the HDD. Failure in either component, due to aging, overheating, or physical damage, can result in partial or complete data loss.

● Logical Volume Corruption

The link between the SSD and HDD can break due to system crashes or improper shutdowns. This disrupts the logical volume, making data recovery more complex.

Precautions to Minimize Data Loss on Fusion Drive

1. Regular Backups

Using Time Machine is one of the best ways to safeguard data. Additionally, cloud storage solutions like iCloud or Google Drive can serve as secondary backup options.

2. Drive Monitoring

Tools like Disk Utility and third-party health monitoring software can help detect issues early. Regular scans can identify bad sectors or other problems before they escalate.

3. Best Practices

• Always eject the Fusion Drive properly before disconnecting.
• Avoid sudden power outages by using a UPS (Uninterruptible Power Supply).
• Regularly update macOS to benefit from performance improvements and bug fixes.

How to Recover Lost Data from Fusion Drive on Mac?

If you encounter data loss, swift action is crucial. Avoid using the Fusion Drive to prevent overwriting existing data.

Immediate Steps After Data Loss

When you realize data has been lost on a Fusion Drive, your first actions can significantly impact the chances of successful recovery.

1. Stop Using the Drive Immediately

   Continuing to use the Fusion Drive after data loss can overwrite the sectors where the lost data resides. For example, installing recovery software directly on the affected drive is a common mistake that reduces recovery chances. Instead, use another Mac or an external drive for recovery processes.

2. Identify the Cause of Data Loss

   Determine whether the issue is software-related, such as file system corruption, or hardware-related, like drive failure. Logical volume corruption is also a possibility, especially for Fusion Drives, where the link between the SSD and HDD might break. Each cause requires a tailored recovery approach.

Recovery Methods

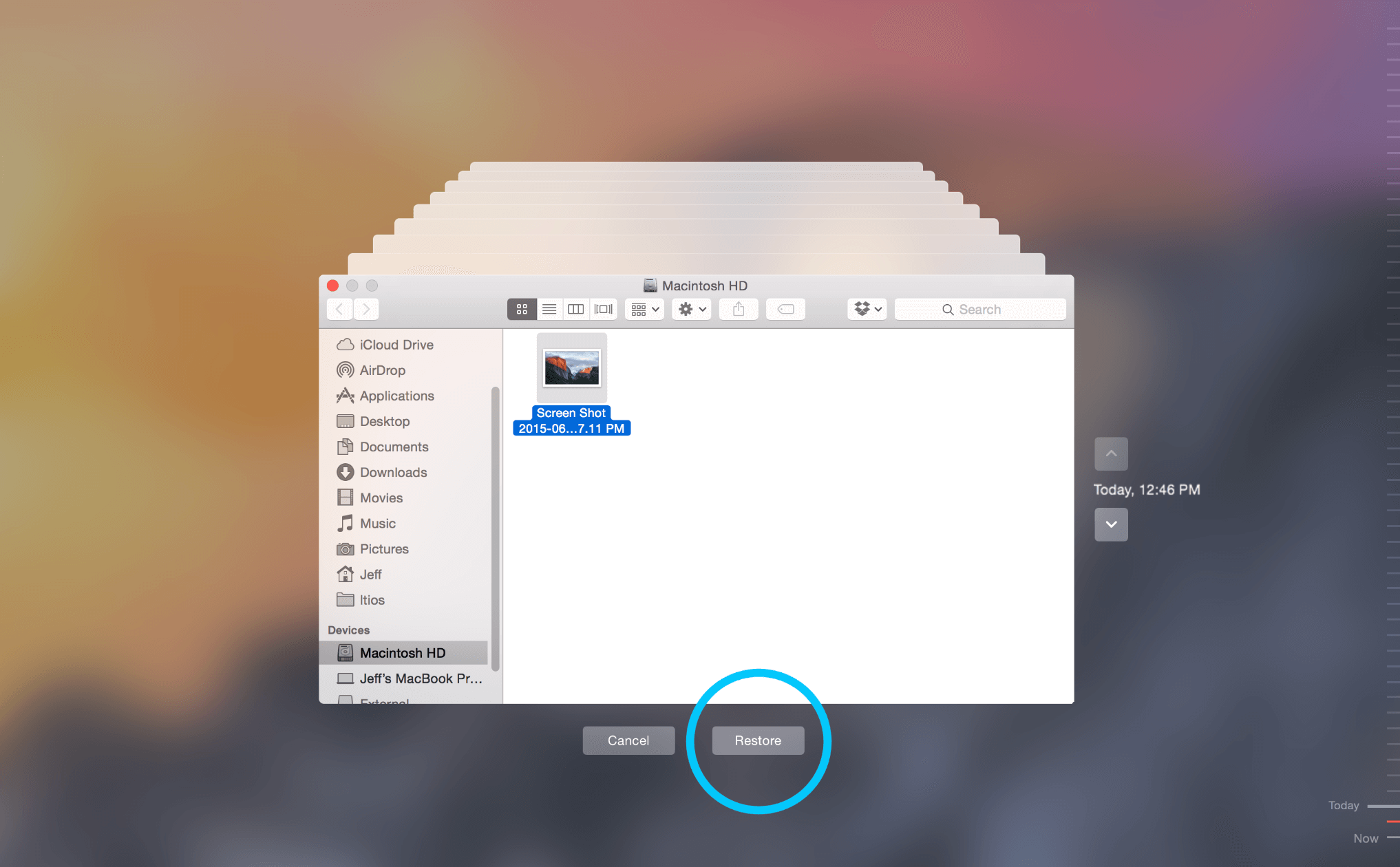

1. Using Time Machine Backups

Time Machine is Apple's built-in backup utility, providing a simple way to restore lost files if backups were set up beforehand.

Steps to Restore Data with Time Machine:

1. Connect the backup drive (e.g., external HDD or SSD) to your Mac.
2. Click the Time Machine icon in the menu bar or go to System Preferences > Time Machine (or System Settings > General > Time Machine).
3. Use the timeline or date navigation on the right side to locate the desired backup point.
4. Preview the files by selecting them and clicking Spacebar.
5. Select the files or folders to restore and click Restore to recover them to their original location.

If Time Machine wasn't set up, proceed to alternative recovery options.

2. Built-in macOS Recovery Mode

Apple provides tools within macOS to handle some common Fusion Drive issues. Recovery Mode and Disk Utility are invaluable for addressing minor file system corruption.

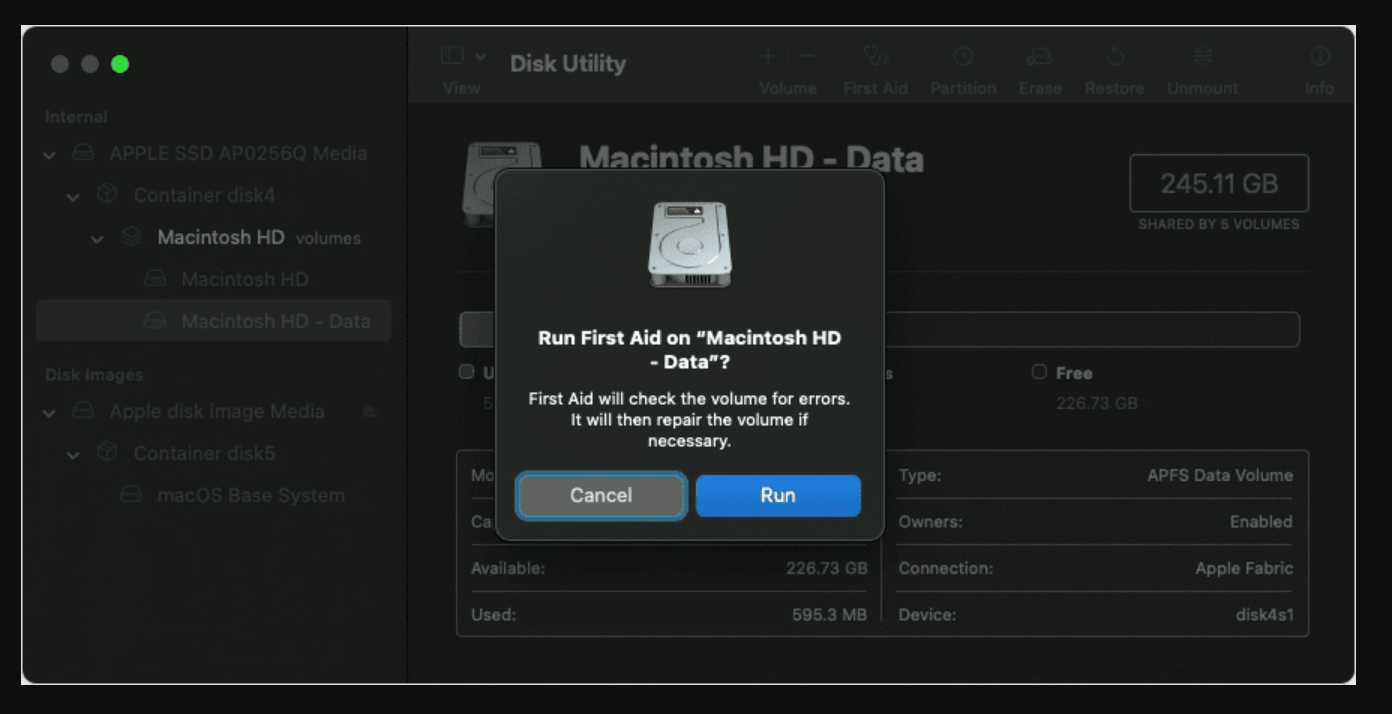

Steps to Use macOS Recovery Mode:

1. Restart your Mac and hold Command (⌘) + R (or Power button for Apple silicon Mac) during startup to enter Recovery Mode.
2. From the macOS Utilities window, choose Disk Utility.
3. Select the Fusion Drive from the list of available drives.
4. Click First Aid to perform a repair on the drive.

5. If the drive cannot be repaired, you may need to reformat it. However, reformatting will erase existing data, so use this as a last resort after attempting data recovery with other tools.

Limitations of Disk Utility:

• It can repair minor logical issues but often fails with severe corruption.
• It doesn't offer recovery options for deleted or lost files.

3. Third-Party Data Recovery Tools

When built-in tools fail, third-party software can provide a robust solution for recovering lost data. These tools are designed to scan the Fusion Drive's SSD and HDD for recoverable files, even if the logical volume is damaged.

Step 1. Download and install the best Mac Fusion Drive data recovery software - such as Donemax Data Recovery for Mac.

Step 2. Open Donemax Data Recovery for Mac, then select the Fusion Drive to start data recovery.

Step 3. Click on Scan button to deeply scan the Fusion Drive and find all recoverable files.

Step 4. After scan, you can preview all recoverable files. Then select the wanted files, click on Recover button to save them.

Advanced Recovery Solutions

1. Terminal Commands

For users with technical expertise or when standard methods fail, advanced recovery options can be explored.

Using Terminal Commands

The Terminal in macOS provides powerful command-line tools for diagnosing and repairing drives. These commands are helpful for addressing logical volume issues.

Steps to Use Terminal:

1. Open Terminal (found in Applications > Utilities).
2. Enter the command:

   diskutil list

   This will display all drives connected to your Mac, including the Fusion Drive.

3. Identify the Fusion Drive's identifier (e.g., disk2).
4. Run the repair command:

   diskutil repairVolume <drive_identifier>

   Replace <drive_identifier> with the actual identifier from the previous step.

Caution: Terminal commands can cause data loss if used incorrectly. Proceed with care and consider consulting an expert if unsure.

2. Professional Data Recovery Services

If all else fails, professional recovery services are the ultimate option. These services use advanced techniques, such as disk imaging and hardware-level recovery, to retrieve data from damaged or corrupted Fusion Drives.

When to Seek Professional Help:

• Physical damage to the Fusion Drive (e.g., clicking noises, overheating).
• Severe logical corruption where neither macOS tools nor software solutions work.

Benefits of Professional Services:

• High success rate for complex recovery scenarios.
• Access to specialized equipment and expertise.
• Safeguards against further data loss during recovery attempts.

While these services can be costly, they are often worth it for critical data. Companies like DriveSavers and Ontrack Data Recovery are reputable options.

How to Prevent Future Data Loss on Fusion Drive?

● Enable Automatic Backups

Set up Time Machine for automatic hourly backups:

1. Connect an external storage device.
2. Go to System Preferences > Time Machine.
3. Enable Back Up Automatically.

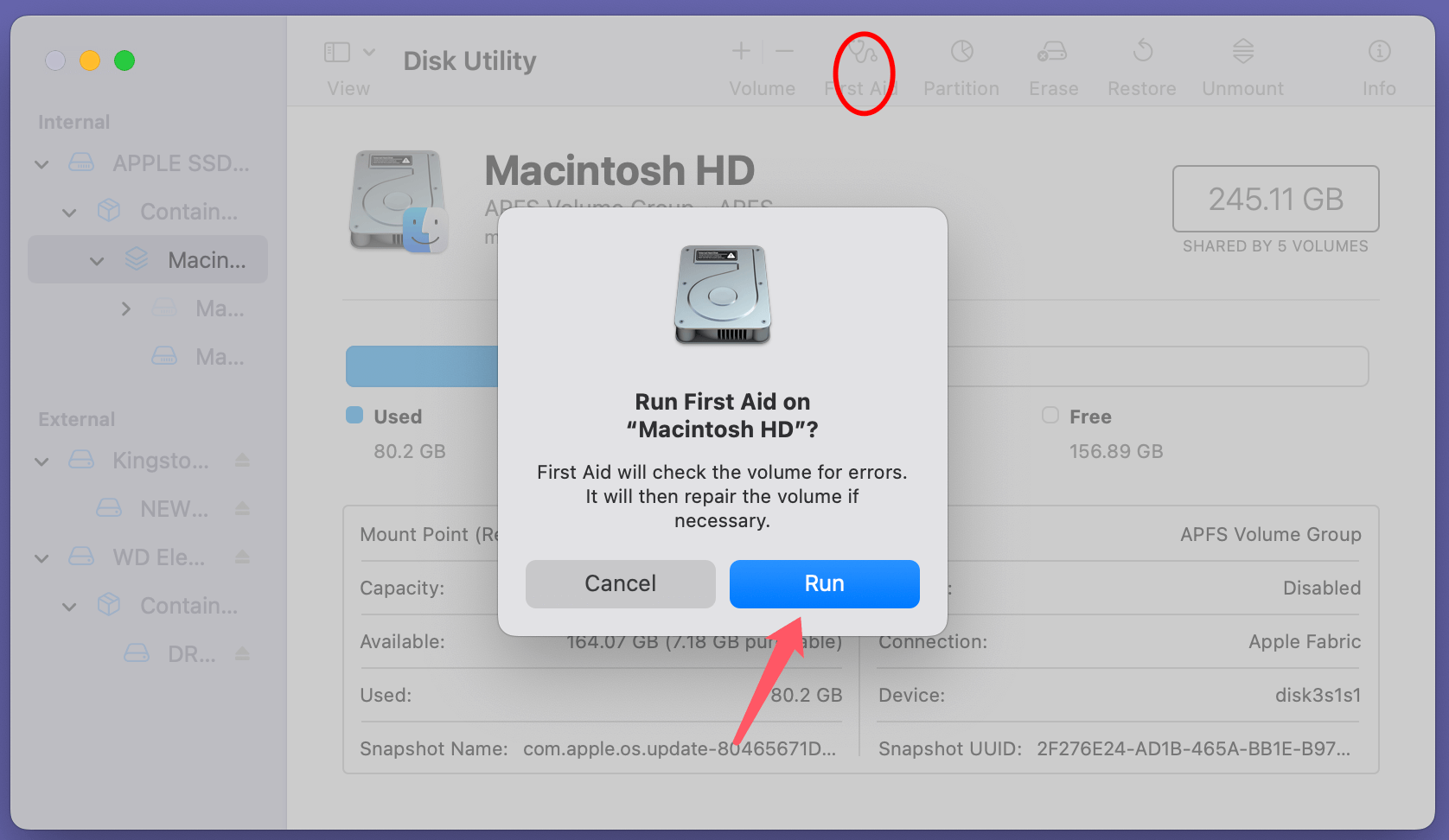

● Regular Maintenance

Use Disk Utility to check the health of your Fusion Drive periodically:

• Open Disk Utility.
• Select the Fusion Drive and run First Aid.

● Upgrade to Reliable Storage

If performance or reliability becomes a concern, consider upgrading to SSD-only solutions. Although pricier, SSDs offer superior speed and durability.

Conclusion

Mac Fusion Drive is a remarkable storage innovation, offering a balance of speed and capacity. However, it's not immune to data loss, whether due to software issues, hardware failures, or user error. The good news is that data recovery is often possible with the right tools and techniques.

By understanding the Fusion Drive's functionality, implementing preventive measures, and acting quickly in case of data loss, users can ensure their valuable data remains safe and accessible. Remember, regular backups and system monitoring are your best defenses against the challenges of data loss.
