How to Repair an xD Card: A Comprehensive Guide

PAGE CONTENT:

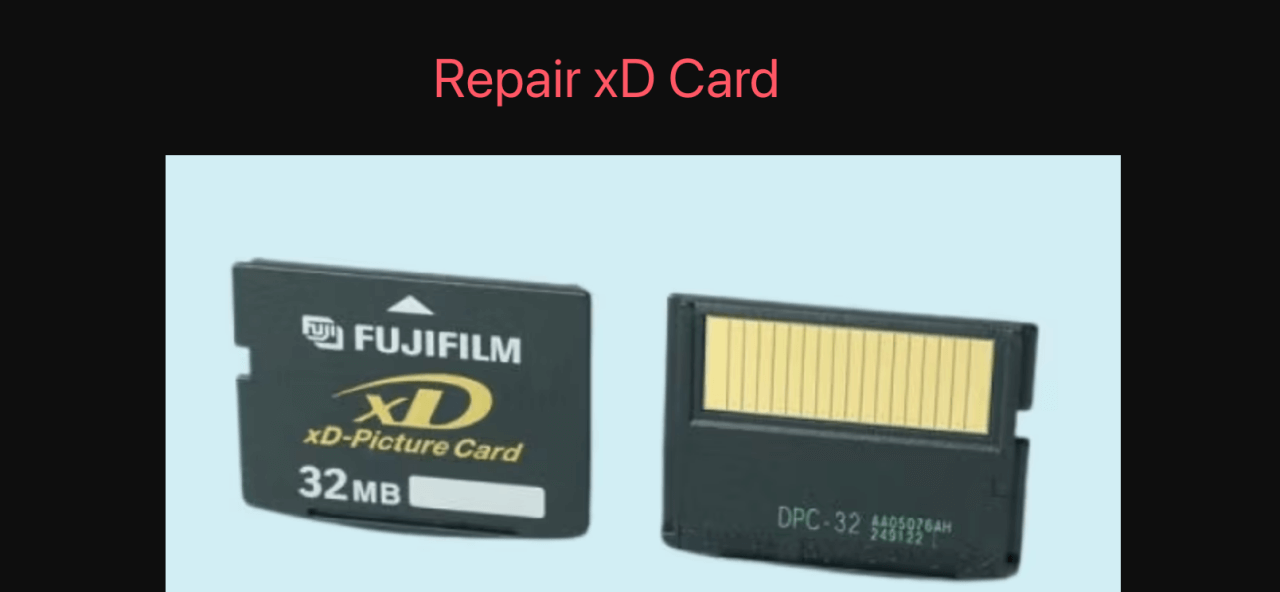

xD (Extreme Digital) Picture Cards were once a popular storage medium for digital cameras, particularly those made by Olympus and Fujifilm. However, as with any storage device, xD cards can become corrupted, physically damaged, or unreadable over time. Losing access to important photos and files due to a faulty xD card can be frustrating, but depending on the severity of the issue, it may be possible to repair or recover the card.

In this comprehensive guide, we will explore various methods for diagnosing and repairing xD cards, including software-based fixes, hardware troubleshooting, and professional recovery options. We'll also discuss preventive measures to extend the life of your xD card and avoid future data loss.

Diagnose the Problem: xD Card Not Working

Before attempting to repair an xD card, it's essential to determine the root cause of the issue. Some problems can be fixed with simple solutions, while others may require professional intervention.

1. Checking for Physical Damage

Start by inspecting the xD card for any visible damage, including:

• Scratches or dirt on the metal connectors
• Bent or broken connectors
• Cracks or warping on the plastic casing

If the card is physically damaged, it may be difficult to repair without specialized tools. However, minor dirt or oxidation on the connectors can sometimes be cleaned to restore functionality.

2. Testing on Multiple Devices

Sometimes, the issue is not with the xD card itself but with the device or card reader. To rule this out:

• Try inserting the card into another camera or card reader
• Use a different USB port or computer
• If the card works on another device, the problem lies with the original reader

3. Identifying Common Error Messages

Your computer or camera may display error messages that provide clues about the issue. Common errors include:

• "Card Not Recognized" – The card is not being detected, possibly due to corruption or hardware failure.
• "Format Required" – The file system may be corrupted, requiring formatting to restore functionality (though this will erase data).
• "Write-Protected" – Some devices allow you to enable or disable writing to the card. Check your device settings.

If the card is detected but unreadable, software-based repairs may be effective.

Repair Damaged xD Card With Software Solutions

If your xD card is not physically damaged but cannot be accessed, you may be able to repair it using software solutions.

Solution 1. Use Built-in Windows and Mac Tools to Fix Corrupted xD Card

For Windows Users:

Step 1. Insert the xD card into a card reader and connect it to your computer.

Step 2. Open File Explorer and locate the drive for your xD card.

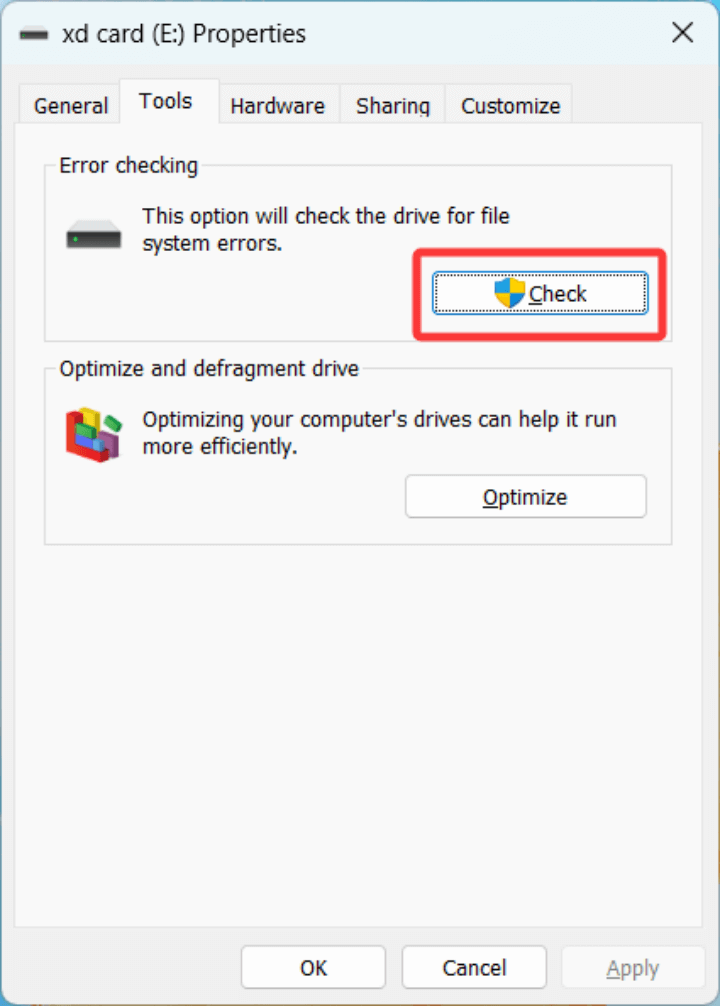

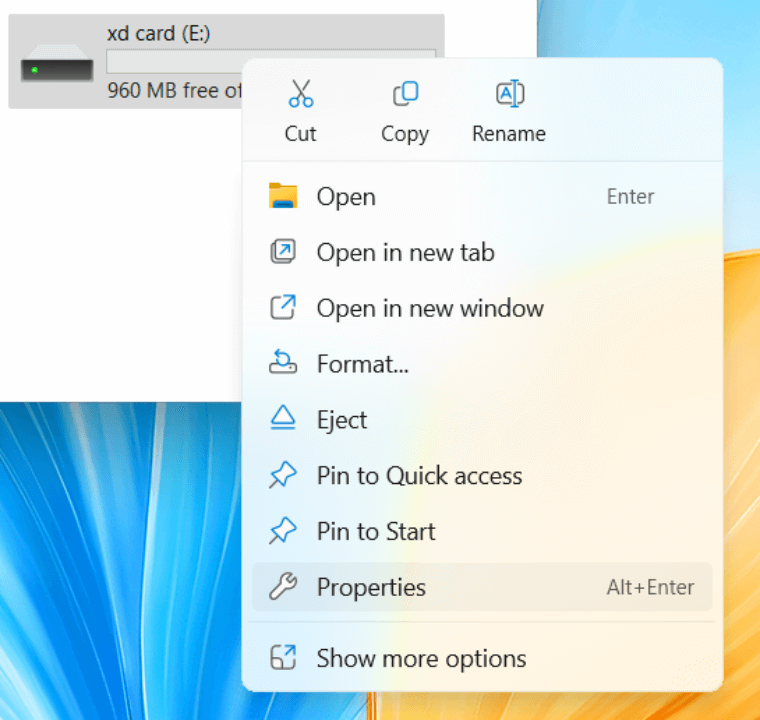

Step 3. Right-click the drive and select Properties from Tools under Check.

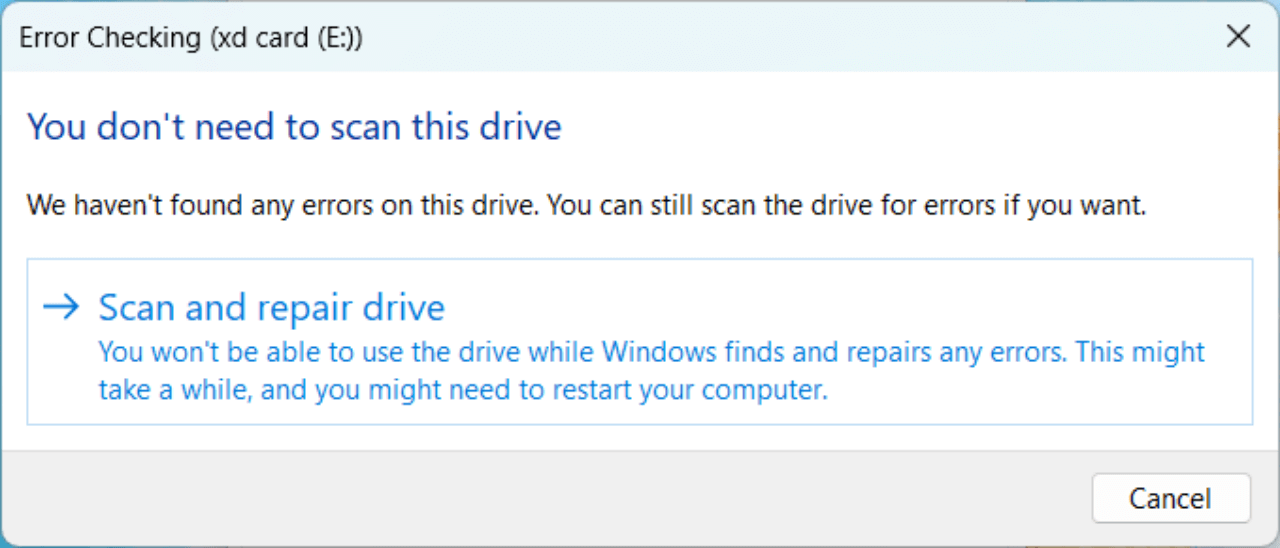

Step 4. Click Scan and repair drive to fix any file system errors.

Alternatively, you can use the CHKDSK command:

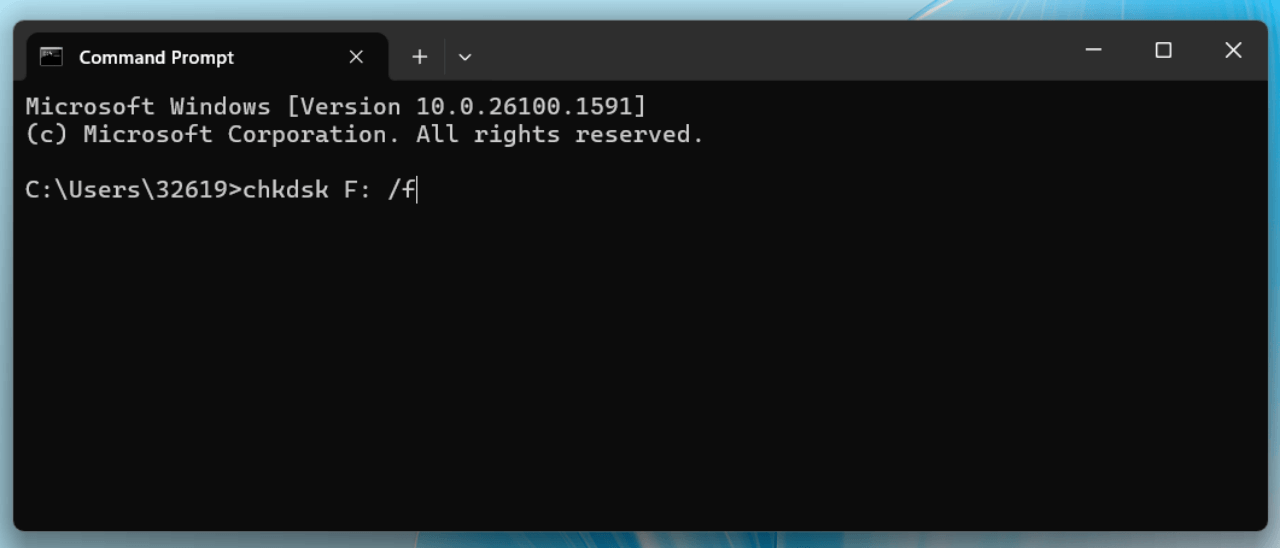

Step 1. As an Administrator open the Command Prompt.

Step 2. Type:

chkdsk X: /f

(Replace "X" with your xD card’s drive letter.)

Step 3. Press Enter and wait for the scan to complete.

For Mac Users:

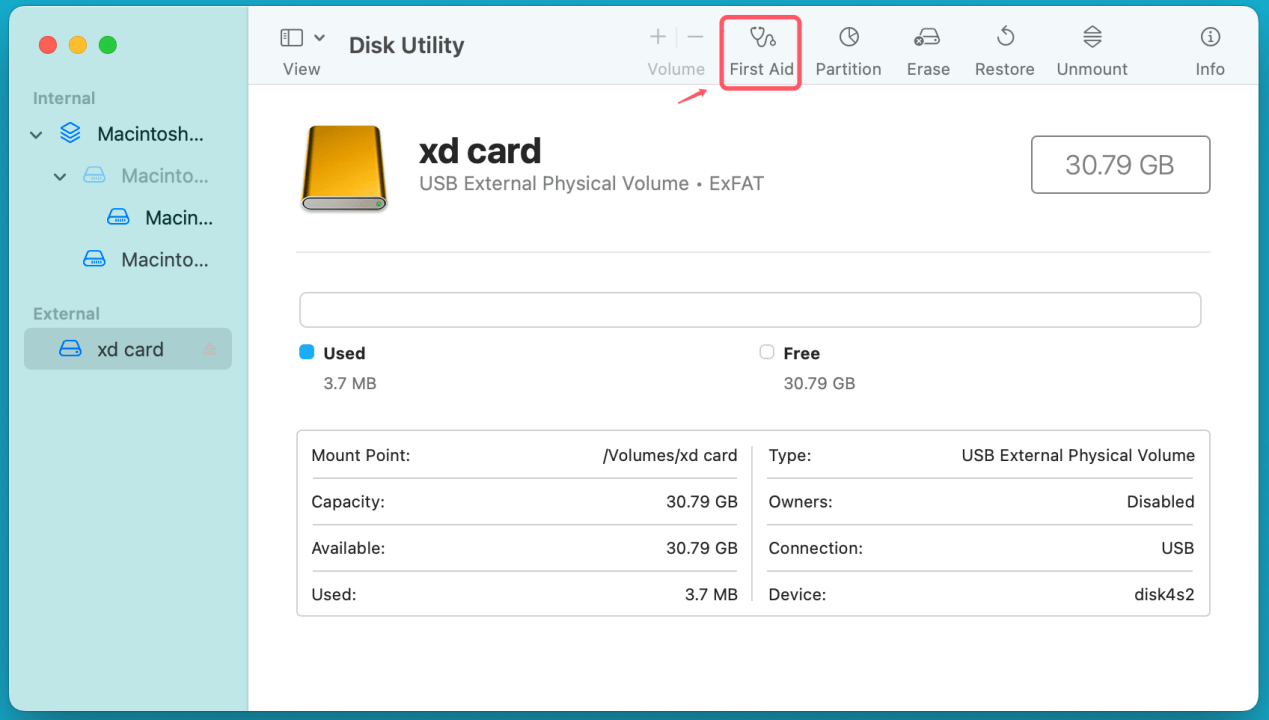

Step 1. Open Disk Utility from Utilities via Applications

Step 2. Select your xD card from the list of drives.

Step 3. Click First Aid and let the tool repair any detected issues.

If these methods fail, you may need to format the card.

Solution 2. Format the xD Card to Fix Corrupted xD Card

Warning: Formatting will erase all data on the card. Only proceed if you have a backup or plan to recover lost files afterward.

Steps to Format the xD Card:

On Windows:

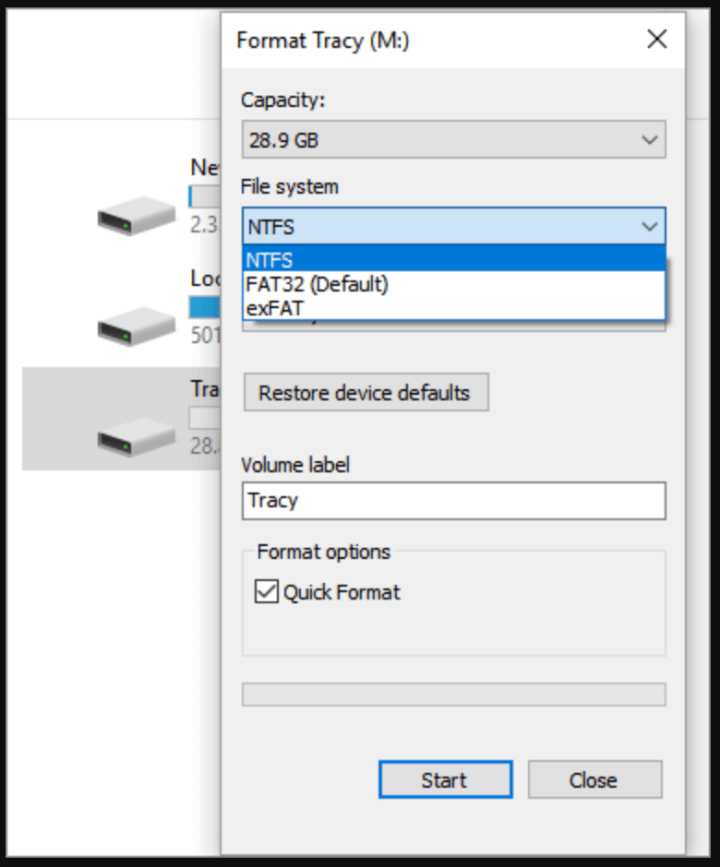

Step 1. Open File Explorer and right-click the xD card drive.

Step 2. Select Format and choose FAT32 as the file system.

Step 3. Click Start to format the card.

On Mac:

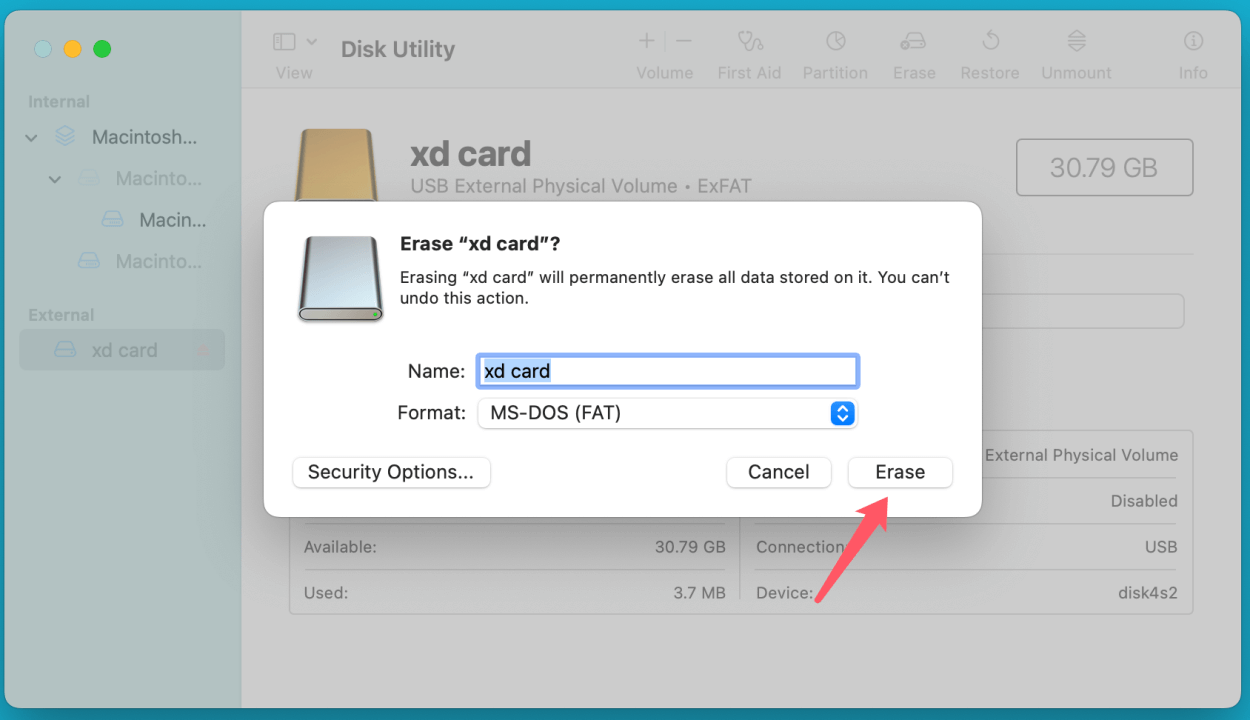

Step 1. Open Disk Utility and select your xD card.

Step 2. Click Erase and choose MS-DOS (FAT) format.

Step 3. Click Erase to format the card.

After formatting, check if the card is now readable. If not, data recovery software may be necessary.

Solution 3. Use Data Recovery Software to Recover Data from xD Card

If your xD card is not accessible but contains important data, data recovery software may help retrieve lost files before attempting a format or repair. These tools scan the card for recoverable data, even if the file system is corrupted or the card appears unreadable on standard devices.

xD Card Data Recovery Software

Data recovery software works by scanning the storage medium and identifying traces of lost files that can be reconstructed.

The success rate of data recovery depends on:

• The severity of the corruption: If the file system is only mildly corrupted, recovery is highly possible.
• Whether new data has been written: If the card has been used after data loss, previous files may have been overwritten.
• The type of file system used: FAT32 and exFAT file systems are easier to recover compared to severely fragmented systems.

Data Recovery from for xD Cards

Donemax Data Recovery is one of the best xD card recovery programs. It supports to securely and completely recover lost videos/images and other files from your xD card.

Donemax Data Recovery supports to recover all file formats. It not only can recover deleted files from your xD card, but it also can recover formatted/lost and inaccessible files from your xD card. Follow the steps below to get your lost files back.

Step 1. Download and install Donemax Data Recovery and then connect the xD card to your computer. Open Donemax Data Recovery, select the xD card from the drive list.

Step 2. Click on Scan button to deeply scan the xD card and find the inaccessible or lost files.

Step 3. After deep scan, you can see all recoverable files. Just select the wanted files, click on Recover button to save them.

If you want to repair the damaged xD card, just choose Disk Manager, select the xD card, click on Repair button.

What to Do After Recovering Your Files

Once you've successfully recovered your files:

1. Save them to a different storage medium (e.g., an external hard drive or cloud storage).
2. Do not write new data to the xD card until you've confirmed its stability.
3. If the card is still unreliable, consider formatting it to restore functionality.

When Data Recovery Software Won't Work

There are cases where software-based recovery may not be effective:

• If the xD card is physically damaged: Cracks, broken connectors, or extreme wear may prevent software from accessing the card.
• If the storage cells are corrupted beyond repair: In severe corruption cases, the data may be permanently lost.
• If the card is not detected by the computer at all: A completely unrecognized card suggests hardware failure.

Hardware-Based Fixes for Damaged xD Card

If software-based repairs fail, you can try some hardware troubleshooting steps.

1. Clean the Metal Connectors

Dirt or oxidation on the xD card connectors can cause read errors. Try cleaning them with:

• A soft, lint-free cloth
• A cotton swab dipped in isopropyl alcohol

Ensure the connectors are dry before reinserting the card.

2. Try a Different Card Reader or Adapter

Some card readers may struggle with older xD card formats. Try:

• Using a different card reader
• Using an xD-to-USB adapter

This can help determine whether the problem is with the card or the reader.

3. Reinsert the Card Properly

Some cameras or readers have issues detecting xD cards if they are not fully inserted. Try:

• Removing and reinserting the card slowly
• Checking for a loose or damaged card slot

Advanced Recovery Options for xD Card Repair

If none of the above methods work, you may need professional recovery services.

1. When to Seek Professional Help

Consider professional recovery if:

• The xD card is physically damaged.
• Important data must be retrieved before formatting.
• The card is undetectable in all devices.

2. Professional Data Recovery Services

Specialized companies like:

• DriveSavers
• Ontrack Data Recovery
• Secure Data Recovery

These services can often retrieve files even from severely damaged xD cards, but they can be expensive.

Prevent Future xD Card Issues

To prolong the life of your xD card and avoid future problems:

1. Proper Handling and Storage

• Keep the card in a protective case when not in use.
• Avoid exposing it to extreme temperatures or moisture.

2. Regular Backups

• Transfer files to a computer or cloud storage regularly.
• Use multiple storage solutions to prevent data loss.

3. Avoid Overuse and Corruption

• Do not remove the card while data is being written.
• Avoid using the same card for too long in high-write environments.

Conclusion

Repairing an xD card depends on the type and severity of the issue. Software-based solutions, such as CHKDSK, Disk Utility, or recovery software, can often fix corruption, while cleaning the connectors or trying a different reader may resolve hardware-related issues. If the card is severely damaged, professional recovery services may be the only option.

To prevent future issues, handle xD cards carefully, back up important data, and use them responsibly. If your xD card is beyond repair, consider replacing it with a more modern storage solution like an SD card or USB drive.

By following these steps, you can maximize the lifespan of your xD card and reduce the risk of data loss.
