How to Format Seagate Game Drive: A Step-by-Step Guide

PAGE CONTENT:

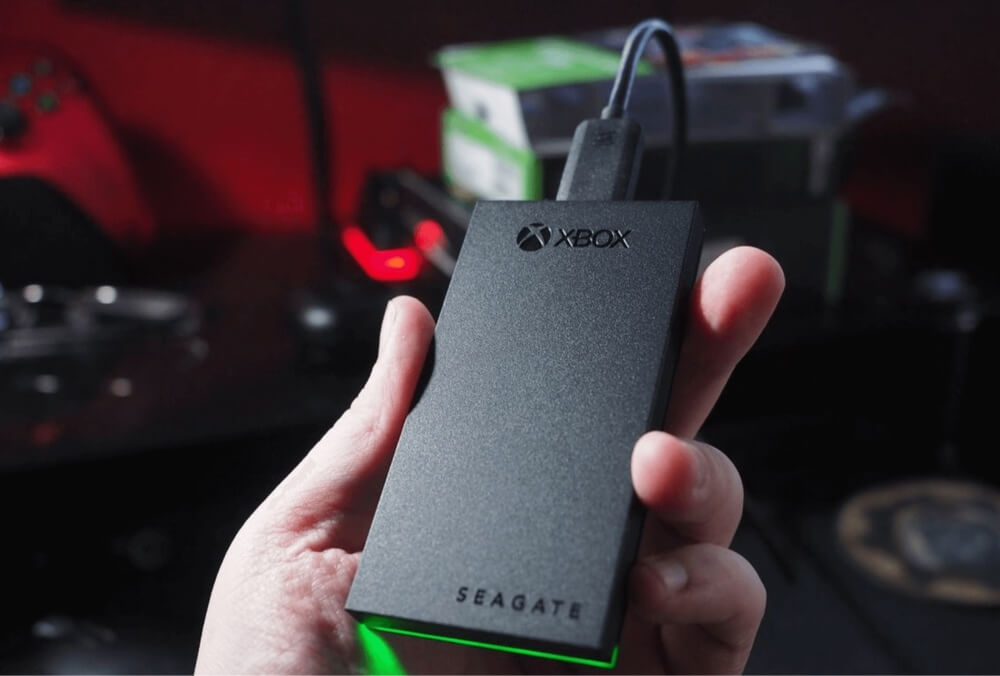

The Seagate Game Drive is a popular external hard drive designed for gaming consoles like PlayStation and Xbox, as well as PCs and Macs. It provides additional storage for games, downloadable content, and media files, making it an essential accessory for gamers.

However, there are instances when formatting the Seagate Game Drive is necessary. Formatting is required when:

• The drive is not recognized by your device.
• You want to change the file system for compatibility with different platforms.
• The drive is corrupted or experiencing errors.
• You need to erase all data before reselling or repurposing the drive.

All of the drive's current data will be erased during formatting. Before moving forward, it is advised to backup any crucial files.

How to Format Seagate Game Drive on Windows?

Formatting a Seagate Game Drive on Windows is straightforward, but it is important to choose the right method depending on the situation. If the drive is recognized by Windows, using File Explorer is the easiest way to format it. However, if the drive is not showing up in File Explorer, Disk Management or Command Prompt (Diskpart) can be used for formatting.

Method 1: Format the Seagate Game Drive via File Explorer

This method is ideal for users who want a quick and simple way to format their Seagate Game Drive.

Steps to Format via File Explorer:

1. Use a USB cord to connect the Seagate Game Drive to the PC.
2. Pressing Windows + E will launch File Explorer.
3. Click on "This PC" or "My Computer" to view all connected drives.

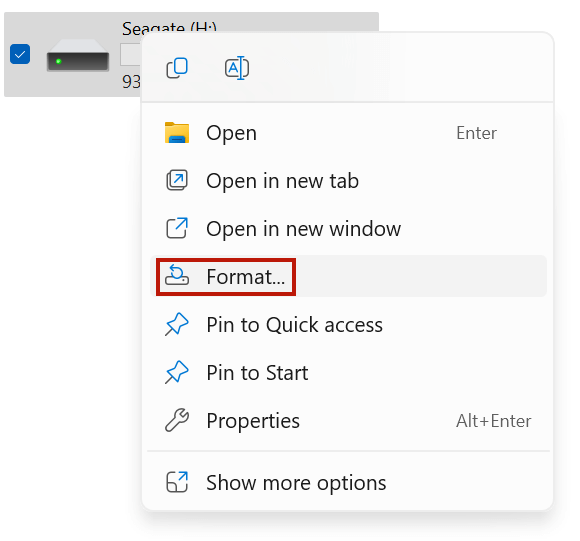

4. Locate the Seagate Game Drive and right-click on it.
5. Select "Format."

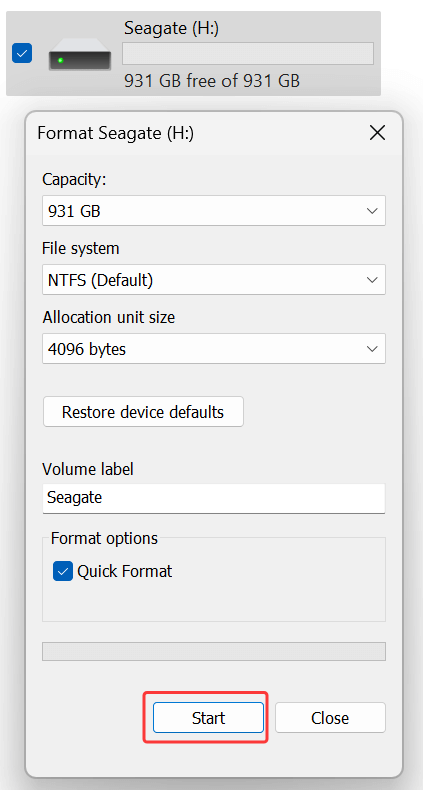

6. A formatting window will appear. Here, choose:
   • File System: Select NTFS (for Windows-only use) or exFAT (for cross-platform use).
   • Quick Format: Check this box if a fast format is required. Unchecking it will perform a full format, which takes longer but ensures the drive is completely erased.
7. Click "Start." A warning will appear stating that formatting will erase all data. Click "OK" to proceed.

8. Once the process is complete, a message will confirm that the formatting was successful. Click "Close" to exit the window.

At this point, the Seagate Game Drive is ready for use. If it is still not working as expected, try Disk Management or Diskpart.

Method 2: Format the Seagate Game Drive via Disk Management

Disk Management is a more advanced tool that allows users to format and manage drives. This method is useful when the Seagate Game Drive is not showing up in File Explorer or is labeled as RAW or Unallocated.

Steps to Format via Disk Management:

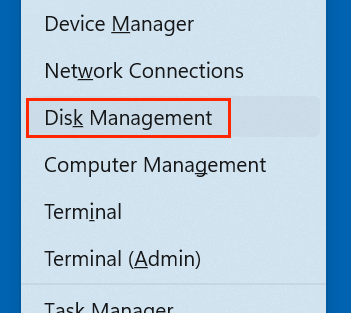

1. Start by pressing Windows + X, then choose "Disk Management."

2. Locate the Seagate Game Drive in the list. It may be labeled as:
   • Healthy (Primary Partition): This means the drive has a file system but may need reformatting.
   • RAW: This means the drive is unformatted or corrupted.
   • Unallocated: This means the drive has no partitions and needs one created before formatting.

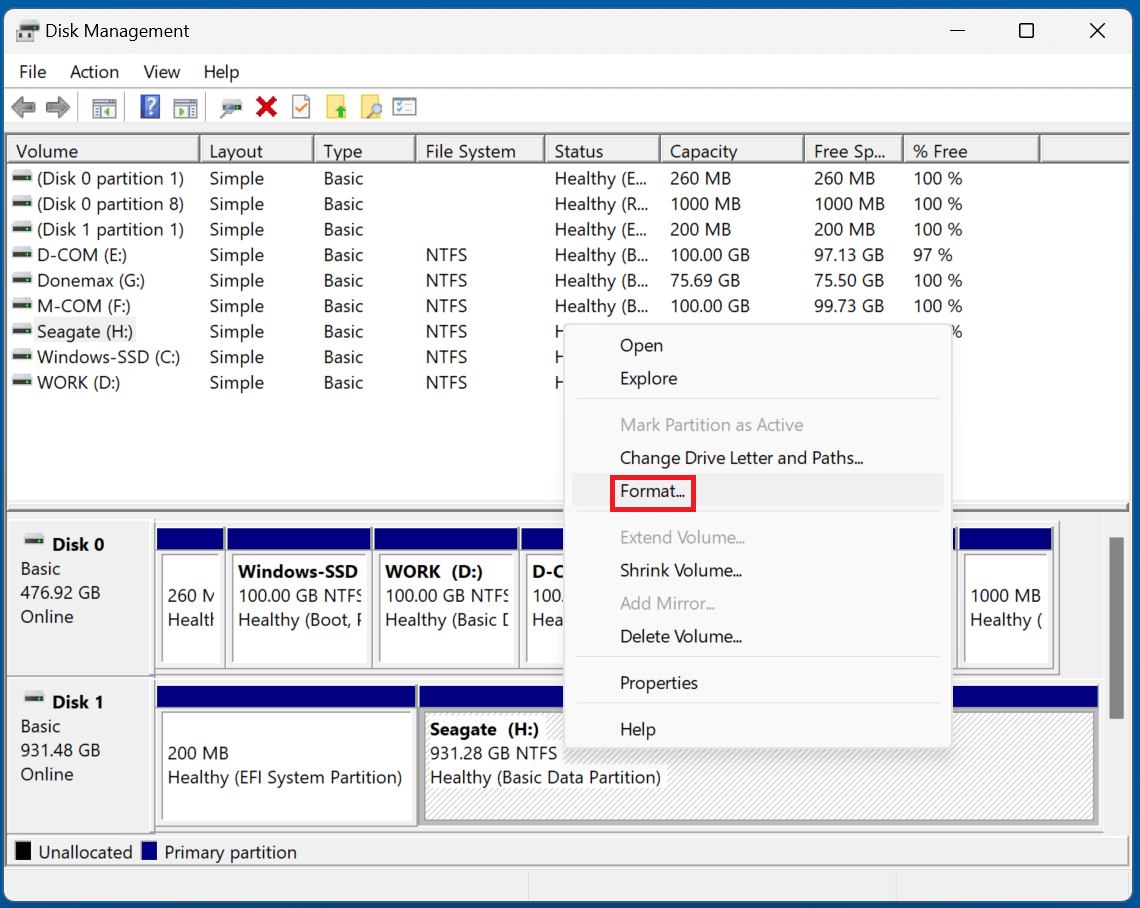

3. If the drive is RAW or has an existing partition, right-click on the drive and select "Format."

4. If there is no allocated space on the drive, right-click on it and choose "New Simple Volume." To build a division, adhere to the on-screen directions.
5. Choose a File System:
   • NTFS for Windows-only usage.
   • exFAT for compatibility across Windows, Mac, and gaming consoles.

Press "OK" and watch as formatting is finished.

Once the drive is formatted, it should appear in File Explorer and be ready for use. If Disk Management does not work, proceed to Diskpart for a more in-depth solution.

Method 3: Format the Seagate Game Drive via Command Prompt (Diskpart)

Diskpart is a powerful command-line tool that allows users to manually format their Seagate Game Drive. This method is helpful if the drive is not responding to Disk Management or is experiencing stubborn errors.

Steps to Format via Diskpart:

1. To launch the Command Prompt, press Windows + R, type cmd, and hit Enter.

2. Press Enter after typing diskpart.
3. To see all attached disks, type list disk and hit Enter.
4. Use the Seagate Game Drive's storage capacity to identify it. Take note of the matching disk number.
5. Type select disk X, substituting the Seagate Game Drive's disk number for X.
6. Press Enter after typing "clean." This will clear the drive of all data and partitions.
7. To create a new partition, type create partition primary and hit Enter.
8. Depending on the desired file system, use format fs=exfat quick or format fs=ntfs quick.
9. Type assign to assign a new drive letter for the Seagate Game Drive.
10. To close Diskpart after the process is finished, type exit.

After completing these steps, the Seagate Game Drive should be fully formatted and ready to use. If the drive still does not function properly, it may have a hardware issue that requires further troubleshooting.

Advanced Formatting Options

For users who want more control over the formatting process, there are third-party tools that offer advanced features such as secure erase, partition resizing, and deep scanning for errors. Some popular tools include:

• Seagate SeaTools – Official Seagate software for testing and repairing drives.
• Donemax Data Recovery – A user-friendly data recovery program with additional formatting options.
• Donemax Data Eraser – Useful for wiping Seagate Game Drive and fix logical errors.

These tools can help in cases where the standard Windows formatting options fail or if additional features are needed.

Troubleshooting Common Formatting Issues

1. Seagate Game Drive Not Detected

• Try using a different USB port or USB cable.
• Open Device Manager, locate the drive, and select "Update drive."
• If the drive is not appearing in Disk Management, check if it is disabled in the BIOS settings.

2. Format Option is Greyed Out

• Use Disk Management to manually format the drive.
• If the drive is write-protected, open Registry Editor and navigate to:

  HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\StorageDevicePolicies

  • Change the value of WriteProtect to 0.
• Use Diskpart and type attributes disk clear readonly to remove write protection.

3. Formatting Errors or Failure

• Run CHKDSK by typing chkdsk X: /f in Command Prompt (replace X with the drive letter).
• Use third-party formatting tools for deep scans and repairs.
• If the drive is still unresponsive, it may have physical damage and require professional repair.

How to Format Seagate Game Drive on Mac?

To format the Seagate Game Drive on a Mac, use Disk Utility.

1. Connect the Seagate Game Drive to the Mac.
2. Open Disk Utility by pressing Command + Space and searching for it.
3. Locate the drive on the left panel.

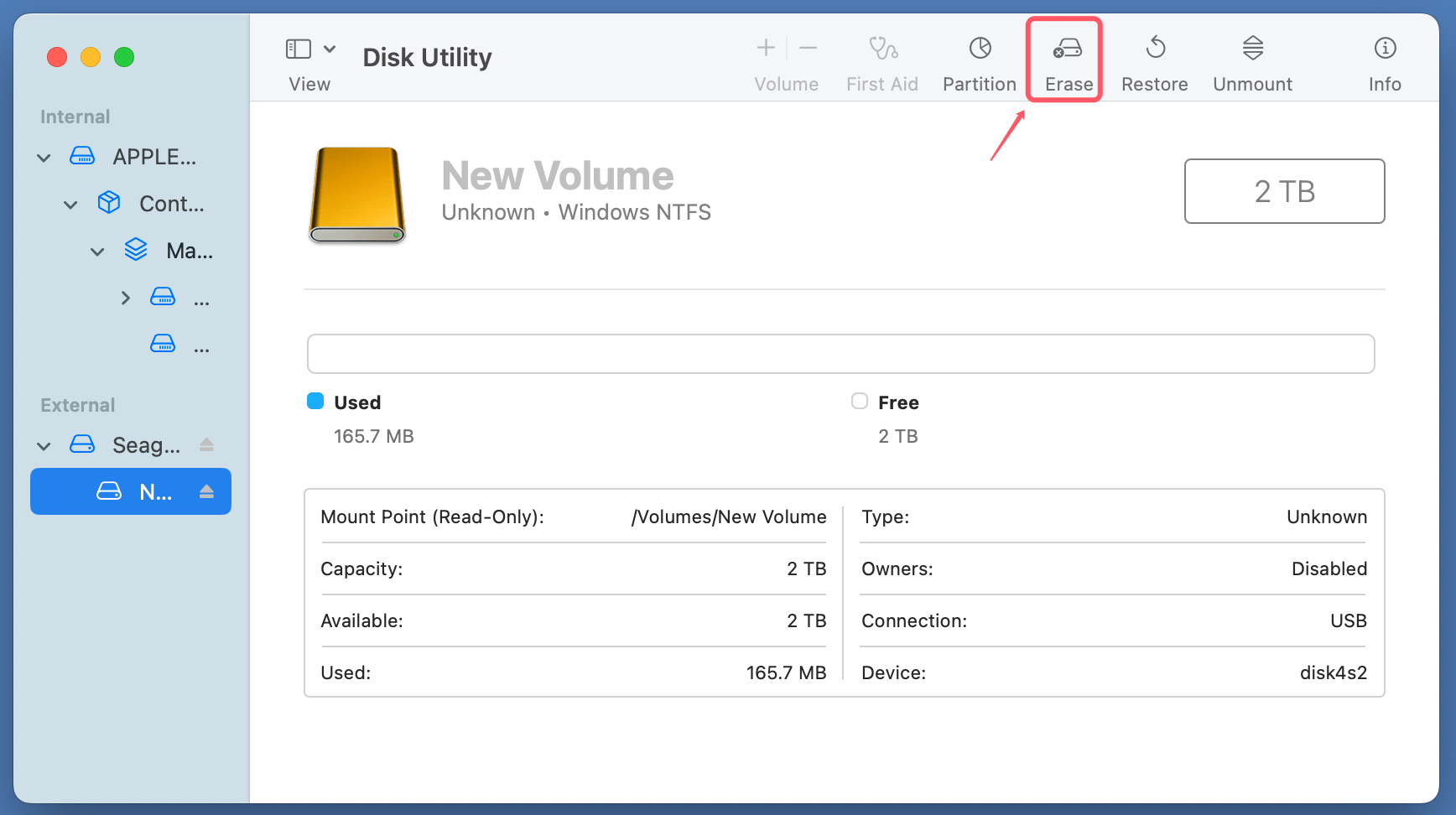

4. Click "Erase" at the top of the window.

5. Choose ExFAT for cross-platform compatibility or APFS, Mac OS Extended (Journaled) for Mac-only use.

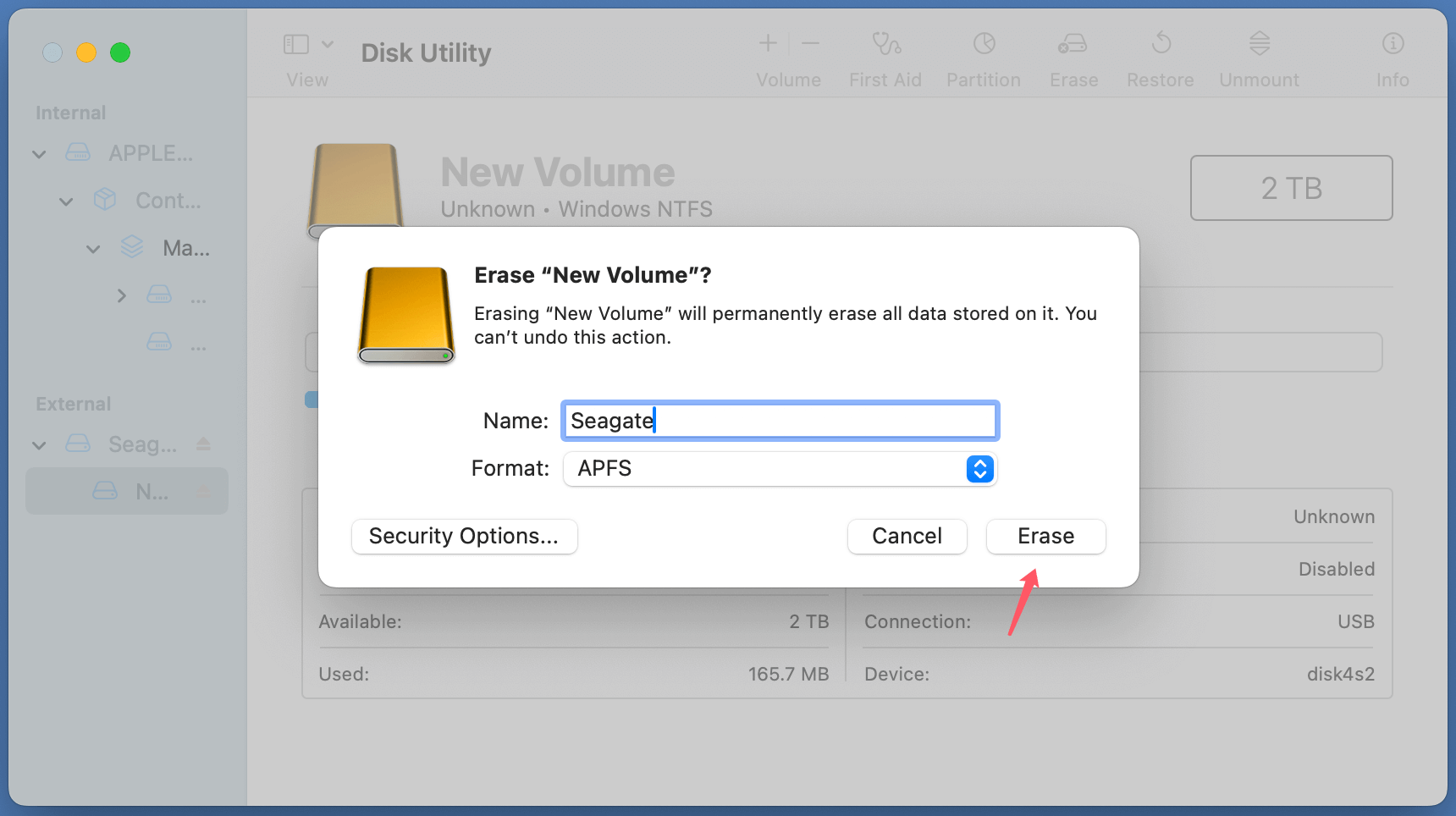

6. Click "Erase" and wait for the formatting process to complete.

Once the process is finished, the Seagate Game Drive is ready for use on macOS.

How to Format Seagate Game Drive for PlayStation and Xbox?

Formatting for PlayStation (PS4/PS5):

1. Plug the Seagate Game Drive into the PlayStation.

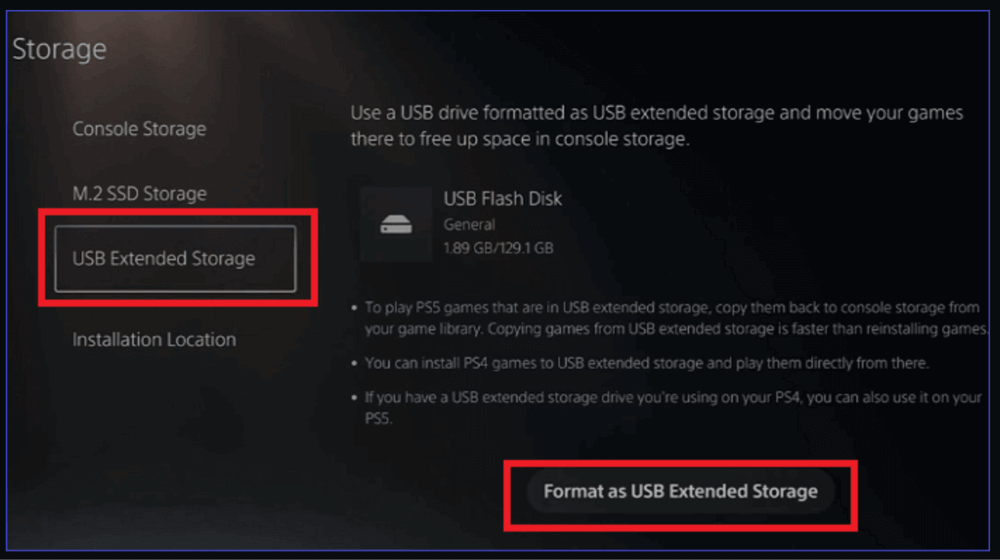

2. Navigate to "Settings" > "Storage" > "USB Storage Devices."
3. Select the Seagate Game Drive and choose "Format as Extended Storage."

4. Confirm and wait for the process to complete.

Once formatted, the drive will only work with PlayStation unless it is reformatted.

Formatting for Xbox (Xbox One/Series X/S):

1. Connect the Seagate Game Drive to the Xbox.

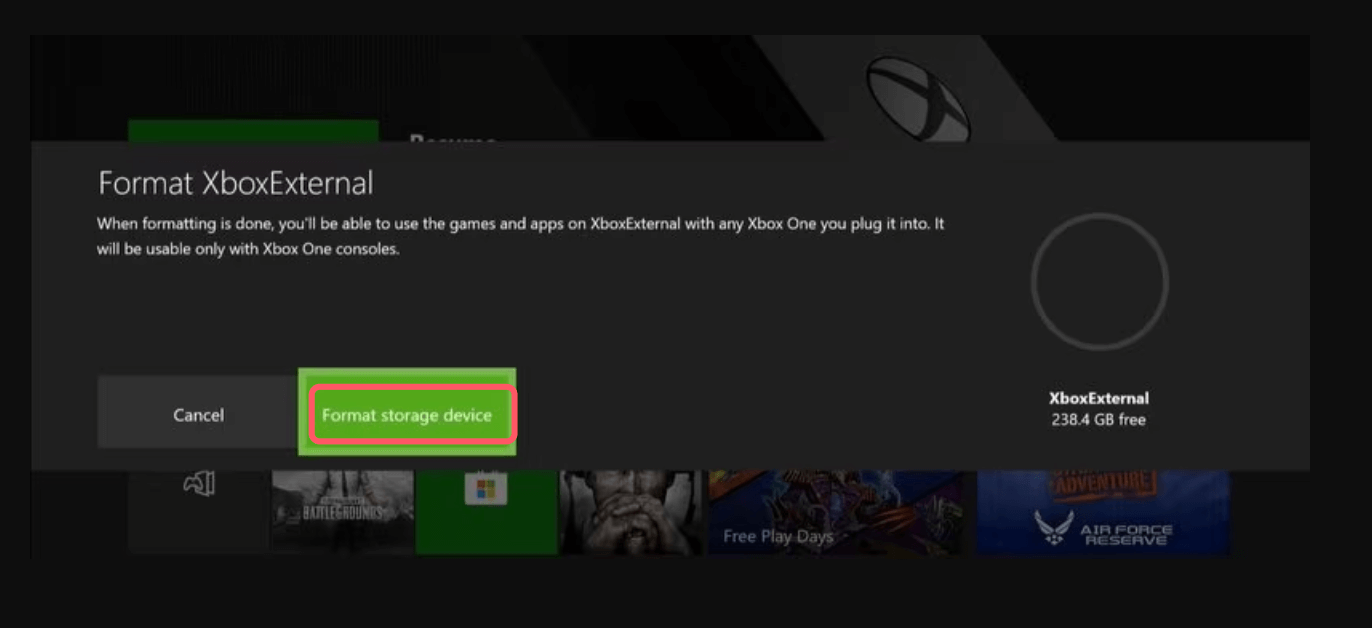

2. A prompt should appear asking to format the drive. Select "Format storage device."

3. Assign a name to the drive and choose whether to install games by default.
4. Confirm and wait for the formatting process to complete.

Once formatted, the drive will be configured specifically for Xbox and may not be readable on other devices unless reformatted.

Common Formatting Issues and Solutions

1. Drive Not Detected

• Ensure the USB cable is properly connected.
• Try a different USB port.
• Update disk drivers via Device Manager.

2. Format Option is Greyed Out

• Use Disk Management or Diskpart to format the drive manually.
• The drive may be write-protected; this can be removed via the Windows Registry Editor.

3. Errors During Formatting

• Run the CHKDSK tool:
  1. Open Command Prompt.
  2. Type chkdsk X: /f, replacing "X" with the drive letter.

• Use third-party tools like Seagate's SeaTools to diagnose and fix issues.

How to Recover Lost Data from a Formatted Seagate Game Drive?

If you have lost data due to formatting the Seagate Game Drive and don't have a backup, you can use data recovery software to unformat the Seagate Game Drive and get all lost data back.

Donemax Data Recovery can help you securely and completely recover lost/formatted data from a Seagate Game Drive.

Step 1. Download and install Donemax Data Recovery on your computer and connect the Seagate Game Drive to the computer.

Step 2. Open Donemax Data Recovery, then select the Seagate Game Drive to start data recovery.

Step 3. Click on Scan button to deeply scan the formatted Seagate Game Drive and find all deleted/formatted/lost files.

Step 4. Once the scan is completed, you can preview all recoverable files. Then select the wanted files, click on Recover button to save them.

Note:

• Donemax Data Recovery also can help you reformat a Seagate Game Drive. Just choose Disk Manager, then select the Seagate Game Drive, click on Format button to reformat the Seagate Game Drive.
• If you want to permanently wipe all data from the Seagate Game Drive before selling or donating, just use disk wipe software - such as Donemax Data Eraser to wipe the drive.

Conclusion

Formatting a Seagate Game Drive is essential for ensuring compatibility with different platforms. Choosing the appropriate file system - NTFS, exFAT, or FAT32 - depends on whether the drive will be used with Windows, Mac, or a gaming console.

Key Takeaways:

• Windows users should use NTFS for PC-only use or exFAT for broader compatibility.
• Mac users should format the drive as exFAT or Mac OS Extended.
• PlayStation and Xbox users should format the drive using the console's built-in settings.
• If the drive is not detected, Disk Management or Diskpart can be used to troubleshoot the issue.

Before formatting, always back up important data to prevent accidental loss. Once formatted, the Seagate Game Drive will be ready for use in the intended system.
